Waterproof Circular Connector T-Type 1 Input 2 Output with PA66 Material and 0.5mm²-2.5mm² Wire Gauge

Merknaam:	Cablein
MOQ:	100 -stcs
Prijs:	The price ranges from $1 to $4 USD per pieces
Verpakking:	Hoogwaardige exportkarton
Betalingsvoorwaarden:	T/T, Western Union

Detailinformatie

Productomschrijving

Detailinformatie

Plaats van herkomst:

SHENZHEN CHINA

Certificering:

CE, ROHS, TUV , ETL

Materiaal geleider:

Koper

Functie:

Multifunctioneel

Spanningswaarde:

450V

Verbindingsweg:

Duwslot

Verbindende wijze:

stop/sluit af

Type connector:

Snelle aansluiting

Vlamweerstandsbeoordeling:

UL94 V-0

Monsters:

Betaalde steekproeven

Levering vermogen:

Maandelijkse output: 10.000 sets

Markeren:

1 Input 2 Output Waterproof Connector

PA66 Material Circular Connector

0.5mm²-2.5mm² Wire Gauge T-Type Connector

Productomschrijving

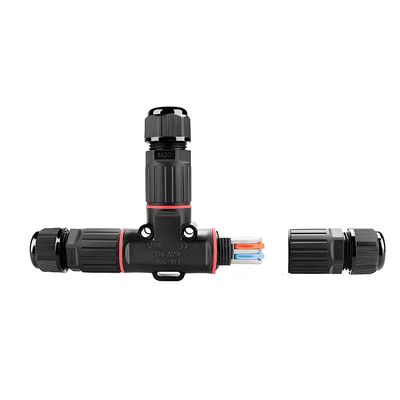

Waterproof Connector P20TB02 T-Type 1 Input 2 Output Quick Wiring

The P20TB02 waterproof connector features a T-type design with 1 input and 2 outputs for efficient power distribution. Its quick-wiring terminals and IP68 rating make it ideal for industrial and outdoor applications.

Specifications

Connection Type	Quick Connect
Installation Type	Wire-to-Wire
Rating	IP68
Material	PA66
Applicable Wire Gauge	0.5mm²-2.5mm²
Waterproof Ring	5-9mm 9-12mm
Pin	2

Technical Parameters

Product Name	Waterproof Connector P20TB02 T-Type 1 Input 2 Output Quick Wiring
Wiring Range	0.5 - 2.5 mm²
Rated Current	1600mA Max
Operating Voltage	0.45KV Max
Ingress Protection (IP) Rating	IP67 /IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5-9mm 9-12mm

Key Advantages

Efficient 1-in-2-Out Power Splitter Efficiently distributes power from one source to two devices with consistent and reliable connectivity.

IP68 Rated for Water & Dust Protection Fully waterproof and dust-tight, ensuring safe operation even in harsh or outdoor environments.

Quick-Wiring Terminal Design Enables fast, tool-free wire connections, significantly reducing installation and maintenance time.

T-Type Compact & Robust Structure Features a durable and space-saving T-shaped design, ideal for confined spaces and industrial applications.

Product Images

Frequently Asked Questions

Q1: How do I connect the wires to this connector?

The connector features a quick-wiring terminal block. Simply loosen the terminal screws, insert the stripped wires into the appropriate input and output ports, and tighten the screws. No special tools or crimping is required.

Q2: What is the IP68 rating, and where can I use this connector?

The IP68 rating guarantees complete protection against dust and long-term immersion in water. It is perfectly suited for outdoor, industrial, and automotive applications where exposure to harsh elements is a concern.

Q3: Can I use this connector to split both power and signal?

This T-type connector is primarily designed for power splitting. We recommend checking the product's voltage and current specifications. For signal splitting, please consult our dedicated signal distribution models to ensure optimal performance.
