Goede prijs online

details van de producten

Huis > Producten >
Waterdichte cirkelvormige aansluiting
>

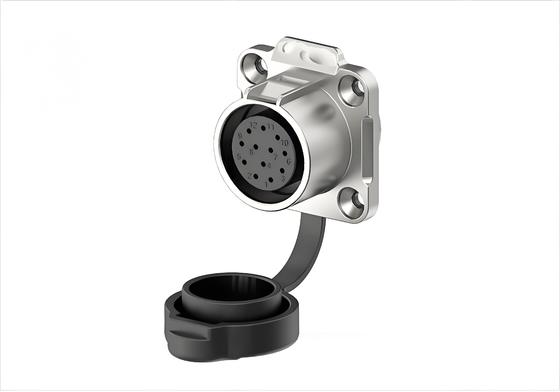

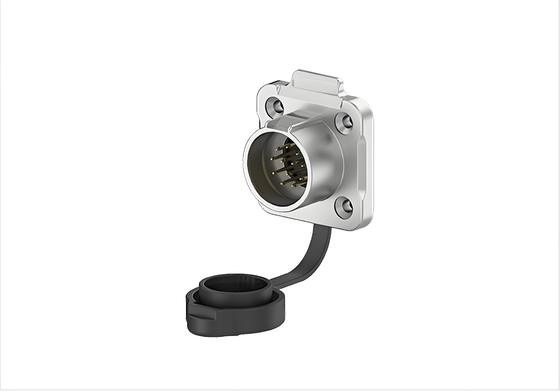

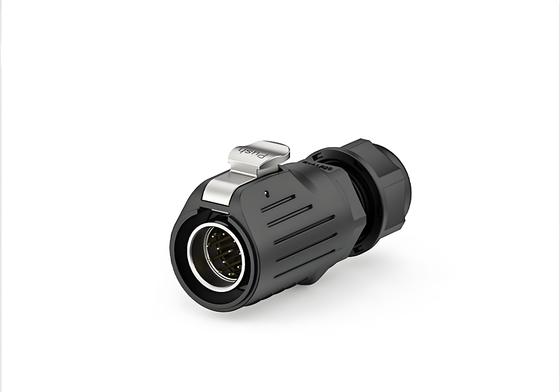

LP20 12-Pin 5A Signal Flange Mount Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals
Alle Categorieën

Waterdichte cirkelvormige aansluiting

Waterdichte Mannelijke Vrouwelijke Schakelaar

Waterdichte Machtsschakelaar

waterdichte kabelschakelaar

Waterdichte signaalconnector

Waterdichte dataconnector

De Waterdichte Schakelaar van RJ45

Waterdichte verbinding voor het monteren van een paneel

Waterdichte LED-connectoren

Stroomstop
Contacteer ons
Mr. Nick Zou
nick@cableinco.com
+86 13310837463
Contact nu
LP20 12-Pin 5A Signal Flange Mount Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals
  • Naam
  • Naam
  • Naam
  • Naam

LP20 12-Pin 5A Signal Flange Mount Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals

Merknaam: Cablein
MOQ: 100 -stcs
Prijs: The price ranges from $1 to $4 USD per pieces
Verpakking: Hoogwaardige exportkarton
Betalingsvoorwaarden: T/T, Western Union
Detailinformatie
Productomschrijving
Detailinformatie
Plaats van herkomst:
Shenzhen China
Certificering:
CE, ROHS, TUV , ETL
Waterdicht:
IP67
Woningmateriaal:
Nylon
Assemblagedraad:
Het solderen of Schroefmontage
Vlamweerstandsbeoordeling:
UL94 V-0
Bedrijfstemperatuur:
-40 ° C tot 85 ° C
Kleur:
Zwart
Garantie:
2 jaar
Temperatuurbereik:
-40-105°C
Productomschrijving
LP20 12-Pin 5A Signal Flange Mount Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals
Specifications
  • Pin: 12 Pin
  • Current Rating(A): 5A Max
  • Material: Metal+plastic
  • Conenction Way: Push-button snap fastener
  • Operating Voltage: 250V Max
  • Assembly Wire: IP-Rated Locking Gland
  • Mounting Type: Flange Mounting Type
  • Out Door UV Resistance: Pass
  • Cable Jacket OD: 0.34-0.75 mm²
Datasheet
Pins Number 2Pins 3Pins 4Pins 5Pins 7Pins 9Pins 12Pins
Rated Voltage 500V 250V
Rated Current 20A 10A 5A
Insulation voltage 2.5KV 1.5KV
IP CODE IP68
Cable Jacket OD Standard Power:⌀8-12mm Standard Signal:⌀5-6.5mm Other:⌀5-9mm
Assembly cable diameter 2.4-4mm²/14-12AWG 1-1.5mm²/18-16AWG 0.34-0.75mm²/22-20AWG
Ambient temperature -40℃~+80℃
Advantages
  1. Material & Performance:
    The housing is made of high-performance PBT engineering plastic, ensuring stable electrical properties, excellent heat resistance, and corrosion resistance. The gold-plated conductive components guarantee superior conductivity and meet temperature rise requirements even in high-temperature environments.
  2. Secure Locking Mechanism:
    Features a push-to-lock snap-fit design for secure mating and smooth insertion/removal.
  3. Waterproof Design:
    Standard IP67 rating (IP68 optional) provides precise waterproof protection.
  4. Certifications & Compliance:
    Complies with TUV, ISO, CE, and RoHS certifications, meeting global market requirements.
Application Industries
  • Automation Equipment
  • LED Lighting
  • Security Equipment
  • Telecommunication Equipment
  • New Energy
  • Electronic Devies
LP20 12-Pin 5A Signal Flange Mount Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 0
Drawing
LP20 12-Pin 5A Signal Flange Mount Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 1 LP20 12-Pin 5A Signal Flange Mount Waterproof Connector - Metal Shell, Plastic Interface, Solder Terminals 2
FAQ
Q: What are the typical applications for this flange mount connector?
A: The LP20 flange mount connector is ideal for industrial control systems, outdoor telecommunications equipment, heavy machinery, and marine electronics where secure panel mounting and environmental protection are required. Its 12-pin configuration and 5A rating make it suitable for power distribution and signal transmission in demanding conditions.
Q: How does the metal-plastic hybrid design enhance performance?
A: The stainless steel metal shell provides electromagnetic shielding (EMI/RFI protection), mechanical robustness, and corrosion resistance, while the plastic interface ensures electrical insulation and weight reduction. This combination delivers optimal protection against both physical stress and environmental factors.
Q: What waterproof rating does this connector achieve?
A: When properly installed with the included sealing gasket, the connector achieves IP68 rating, meaning it is dust-tight and can withstand continuous submersion in water up to 1.5 meters depth for 30 minutes. The solder terminals further prevent moisture ingress through secure, sealed connections.
Tags:

Waterbestendige cirkelvormige aansluiting

Mannelijke en vrouwelijke connectoren

Cirkelkabelschakelaars
